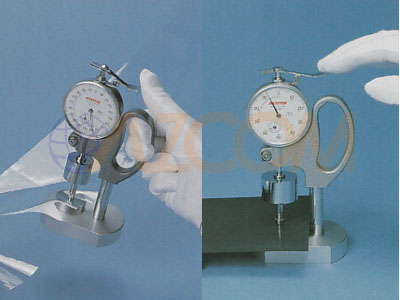

Dụng cụ đo độ dầy lực kẹp không đổi Peacock FFG Series

Posted on Posted in Đồng hồ đo độ dầy
Loại vật liệu đo JIS. NO Model
Shrink package film. Z 1709 FFG-1
Polyethylene package film. Z 1702 FFG-1
Ethylene film. K 6783 FFG-1
Polyvinyl chloride film. K 6732 FFG-2
Sheet rubber. K 6328 FFG-4
Vulcanized rubber / Thermoplastic rubber
(Hardness 35IRHD less) Contact Point ø5mm
K 6250A FFG-5
Vulcanized rubber / Thermoplastic rubber
(Hardness 35IRHD less) Contact Point ø8mm
K 6250A FFG-6
Vulcanized rubber / Thermoplastic rubber
(Hardness 35IRHD over) Contact Point ø5mm
K 6250A FFG-7
Vulcanized rubber / Thermoplastic rubber
(Hardness 35IRHD over) Contact Point ø8mm
K 6250A FFG-8
Urethane form. K 6402 FFG-9
Common fabric (fuzzy material). L 1096 FFG-11
Adhesive interlined cloth (common knit). L 1086 FFG-11
Stockinet (common knit). L 1018 FFG-11
Unwoven / interlined cloth (non-standard). L 1085 FFG-12
Adhesive interlined cloth (non-woven). L 1086 FFG-12



Specifications Compact type FFG Series
Model Graduation
(mm)
Range
(mm)
Indicator error
(µm)
Throat depth
(mm)
Contact Point dia
(Ømm)
Anvil dia
(Ømm)
Measuring force
N(gf)
Parallelism
(µm)
FFG-1 0.001 2 ±10 24 5 30 1.25±0.15
( 125±15 )
5
FFG-2 0.001 2 ±10 24 5 30 less than 0.8
( less than 80 )
5
FFG-4 0.01 10 ±22 24 10 30 less than 0.8
( less than 80 )
7
FFG-5 0.01 7 ±22 24 5
( 19.625mm² )
30 0.2±0.04
( 20±4 )
5
FFG-6 0.01 10 ±22 24 8
( 50.24mm² )
30 0.51±0.1
( 51±10 )
7
FFG-7 0.01 10 ±22 24 5
( 19.625mm² )
30 0.44±0.1
( 44±10 )
5
FFG-8 0.01 10 ±22 24 8
( 50.24mm² )
30 1.13±0.26
( 113±26)
7
FFG-9 0.01 10 ±22 24 35.7
( 10cm² )
40 less than 0.37
( less than 37 )
25
FFG-11 0.01 10 ±22 24 25.2
( 5cm² )
30 less than 0.35
( less than 35 )
20
FFG-12 0.01 10 ±22 24 16
( 2cm² )
30 less than 0.4
( less than 40 )
15
