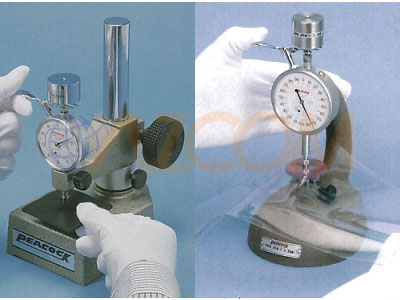

Dụng cụ đo độ dầy lực kẹp không đổi Peacock FFA Series

Posted on Posted in Đồng hồ đo độ dầy
Vật liệu đo JIS. NO Model
Shrink package film. Z 1709 FFA-1
Polyethylene package film. Z 1702 FFA-1
Ethylene film. K 6783 FFA-1
Polyvinyl chloride film. K 6732 FFA-2
Leather. K 6550 FFA-3
Artificial leather. K 6505 FFA-3
Sheet rubber. K 6328 FFA-4
Vulcanized rubber / Thermoplastic rubber
(Hardness 35IRHD less) Contact Point ø5mm
K 6250A FFA-5
Vulcanized rubber / Thermoplastic rubber
(Hardness 35IRHD less) Contact Point ø8mm
K 6250A FFA-6
Vulcanized rubber / Thermoplastic rubber
(Hardness 35IRHD over) Contact Point ø5mm
K 6250A FFA-7
Vulcanized rubber / Thermoplastic rubber
(Hardness 35IRHD over) Contact Point ø8mm
K 6250A FFA-8
Urethane form. K 6402 FFA-9
Common fabric (basic). L 1096 FFA-10
Adhesive interlined cloth (common weave). L 1086 FFA-10
Common fabric (fuzzy material). L 1096 FFA-11
Adhesive interlined cloth (common knit). L 1086 FFA-11
Stockinet (common knit). L 1018 FFA-11
Unwoven / interlined cloth (non-standard). L 1085 FFA-12
Adhesive interlined cloth (non-woven). L 1086 FFA-12
Tensile properties of plastics. K 7113 FFA-13
FFA-7
FFA-7



Specifications Stand type FFA Series
Model Graduation
(mm)
Range
(mm)
Indicator error
(µm)
Throat depth
(mm)
Contact Point dia
(Ømm)
Anvil dia
(Ømm)
Measuring force
N(gf)
Parallelism
(µm)
FFA-1 0.001 2 ±8 55 5 40 1.25±0.15
( 125±15 )
5
FFA-2 0.001 2 ±8 55 5 40 less than 0.8
( less than 80 )
5
FFA-3 0.01 10 ±20 55 10 50 3.93±0.1
( 393±10 )
10
FFA-4 0.01 10 ±20 55 10 50 less than 0.8
( less than 80 )
7
FFA-5 0.01 7 ±20 55 5
( 19.625mm² )
50 0.2±0.04
( 20±4 )
5
FFA-6 0.01 10 ±20 55 8
( 50.24mm² )
50 0.51±0.1
( 51±10 )
7
FFA-7 0.01 10 ±20 55 5
( 19.625mm² )
50 0.44±0.1
( 44±10 )
5
FFA-8 0.01 10 ±20 55 8
( 50.24mm² )
50 1.13±0.26
( 113±26)
7
FFA-9 0.01 10 ±20 55 35.7
( 10cm² )
50 less than 0.37
( less than 37 )
25
FFA-10 0.01 10 ±20 55 11.3
( 1cm² )
50 less than 2.4
( less than 240 )
10
FFA-11 0.01 10 ±20 55 25.2
( 5cm² )
50 less than 0.35
( less than 35 )
20
FFA-12 0.01 10 ±20 55 16
( 2cm² )
50 less than 0.4
( less than 40 )
15
FFA-13 0.01 10 ±20 55 10
( 78.5mm² )
50 less than 1.57
( less than 157 )
7
