Thước cặp đo ngoài Peacock series LA

Posted on Posted in Sản phẩm, Thiết bị, dụng cụ đo, Thước cặp đồng hồ

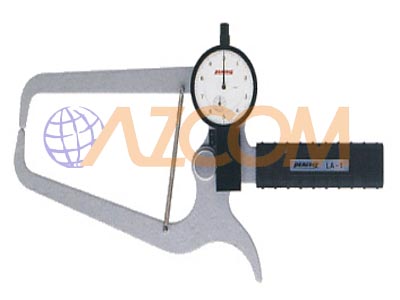

Model LA-1
Graduation 0.1mm
Range 0 – 80mm
Throat depth 120mm
Dial calipers LA-1
Model LA-2
Graduation 0.1mm
Range 0 – 80mm
Throat depth 240mm
LA-2
Model LA-3
Graduation 0.1mm
Range 0 – 80mm
Throat depth 400mm

LA-3

Model LA-4
Graduation 0.05mm
Range 0 – 50mm
Throat depth 90mm
LA-4
Model LA-5
Graduation 0.05mm
Range 0 – 50mm
Throat depth 150mm
LA-5
Model LA-6
Graduation 0.01mm
Range 0 – 10mm
Throat depth 60mm
LA-6
Model LA-7
Graduation 0.01mm
Range 0 – 60mm
Throat depth 85mm

Adjustable frame
The LA-7 can measure
 an absolute value in a
 measuring range of 10mm
It allows measurement
 of comparative values in
 more than 10mm

LA-7
Model LA-8
Graduation 0.1mm
Range 0 – 80mm
Throat depth 130mm
LA-8
Model LA-9
Graduation 0.1mm
Range 0 – 30mm
Throat depth 100mm
LA-9
Model LA-10
Graduation 0.01mm
Range 0 – 20mm
Throat depth 100mm
LA-10



Model Graduation
(mm)
Range
(mm)
Indication error
(mm)
Throat depth
(mm)
Dimensions (mm)
H 1 H 2 H 3 H 4
LA-1 0.1 0 – 80 ±0.2 120 25 40 25 40
LA-2 0.1 0 – 80 ±0.2 240 48 57 48 57
LA-3 0.1 0 – 80 ±0.2 400 60 60 58 79
LA-4 0.05 0 – 50 ±0.15 90 30 40 30 40
LA-5 0.05 0 – 50 ±0.15 150 38 57 15 21
LA-5S 0.05 0 – 10 ±0.15 120 1.5 10 34 34
LA-6 0.01 0 – 10 ±0.03 60 2.5 18 2.5 18
LA-7 0.01 0 – 60 ±0.03 85 20 20 15 15
LA-8 0.1 0 – 80 ±0.2 130
LA-9 0.1 0 – 30 ±0.2 100 2 12 2 12
LA-10 0.01 0 – 20 ±0.03 100 28 28 28 28
Name of parts
LA series ; Name of parts

Model LA-11
Graduation 0.1mm
Range 0 – 50mm
Throat depth 125mm
LA-11
Model LA-13
Graduation 0.1mm
Range 0 – 130mm
Throat depth 235mm
LA-13
Model LA-14
Graduation 0.01mm
Range 100 – 150mm
Throat depth 70mm

LA-14 is for comparative
 measurement.

LA-14
Model LA-20
Graduation 0.1mm
Range 0 – 80mm
Throat depth 125mm
LA-20
Model LA-21
Graduation 0.1mm
Range 0 – 80mm
Throat depth 220mm
LA-21
Model LA-22
Graduation 0.1mm
Range 0 – 80mm
Throat depth 250mm
LA-22
Model LA-23
Graduation 0.1mm
Range 0 – 80mm
Throat depth 300mm
LA-23
Model LA-24
Graduation 0.1mm
Range 0 – 100mm
Throat depth 600mm

Max. opening frame
   500mm

LA-24
Example (LA-24)
Example (LA-24)

Model LA-31
Graduation 0.01mm
Range 0 – 20mm
Throat depth 125mm
LA-31



Model Graduation
(mm)
Range
(mm)
Indication error
(mm)
Throat depth
(mm)
Dimensions (mm)
H 1 H 2 H 3 H 4
LA-11 0.1 0 – 50 ±0.2 125 2 5.5 2 5.5
LA-13 0.1 0 – 130 ±0.3 235 134 134 15 37
LA-14 0.01 100 – 150 ±0.03 70
LA-20 0.1 0 – 80 ±0.2 125 17 11 17 11
LA-21 0.1 0 – 80 ±0.2 220 66 69 12 10
LA-22 0.1 0 – 80 ±0.2 250 28 23 62 62
LA-23 0.1 0 – 80 ±0.2 300 45 50 48 43
LA-24 0.1 0 – 100 ±0.3 600 300 300 100 100
LA-31 0.01 0 – 20 ±0.03 125 60 63
Name of parts
LA series ; Name of parts
