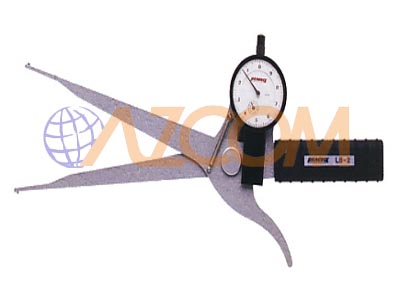

Dial Calipers LB series (Inside measuring of ID and groove widths)

Dial Calipers LB series (Inside measuring of ID and groove widths)
Model LB-1
Graduation 0.1mm
Range 10 – 90mm
Throat depth 125mm
Dia Calipers-LB-1
Model LB-2
Graduation 0.1mm
Range 10 – 90mm
Throat depth 180mm
LB-2
Model LB-3
Graduation 0.01mm
Range 10 – 30mm
Throat depth 50mm
LB-3
Model LB-4
Graduation 0.01mm
Range 10 – 30mm
Throat depth 100mm
LB-4
Model LB-5
Graduation 0.01mm
Range 20 – 40mm
Throat depth 150mm
LB-5
Model LB-6
Graduation 0.01mm
Range 30 – 50mm
Throat depth 80mm
LB-6
Model LH-2
Graduation 0.01mm
Range 10 – 120mm
Throat depth 50mm
Dial Hand Caliper Gauge

LH-2

Model LB-7
Graduation 0.01mm
Range 10 – 70mm
Throat depth 85mm

Adjustable frame

LB-7
Model LB-7S
Graduation 0.01mm
Range 15 – 35mm
Throat depth 50mm

Adjustable frame

LB-7S
Model LB-7V
Graduation 0.01mm
Range 35 – 85mm
Throat depth 20mm

Adjustable frame

LB-7V
Model LB-8
Graduation 0.01mm
Range 100 – 120mm
Throat depth 90mm
LB-8
Model LB-9
Graduation 0.01mm
Range 20 – 40mm
Throat depth 130mm
LB-9
Model LB-14
Graduation 0.01mm
Range 100 – 150mm
Throat depth 70mm

Adjustable frame

LB-14



Specifications
Model Graduation
(mm)
Range
(mm)
Indication error
(mm)
Throat depth
(mm)
Height of contact point
(mm)
LB-1 0.1 10 – 90 ±0.2 125 2
LB-2 0.1 10 – 90 ±0.2 180 2
LB-3 0.01 10 – 30 ±0.03 50 2
LB-4 0.01 10 – 30 ±0.03 100 2
LB-5 0.01 20 – 40 ±0.03 150 4
LB-6 0.01 30 – 50 ±0.03 80 4
LB-7 0.01 10 – 70 ±0.03 85 2
LB-7S 0.01 15 – 35 ±0.03 50 3.5
LB-7V 0.01 35 – 85 ±0.03 20 6.5
LB-8 0.01 100 – 120 ±0.03 90 30 (SK hardened, one unit with frame)
LB-9 0.01 20 – 40 ±0.03 130 2 (SK hardened, one unit with frame)
LB-14 0.01 100 – 150 ±0.03 70 7
LH-2 0.01 10 – 120 ±0.03 50 2
Dimensions for contact point

LB-1, -2, -3, -4, -5, -6, -7, LH-2 LB-7V
Dimensions for contact point ; LB-1 - LB-7, LH-2
*Hmm (height of contact point)
3, 4, 5, 6, 7, 8, 9, 10mm type are
available as options. Order pair as 1 set (2pcs).
Dimensions for contact point ; LB-7V
LB-7S LA-14, LB-14
Dimensions for contact point ; LB-7S Dimensions for contact point ; LA-14, LB-14
