Hệ thống đo dao Renishaw cho máy phay CNC

Posted on Posted in Sản phẩm, Thiết bị đo Renishaw, Thiết bị, dụng cụ đo

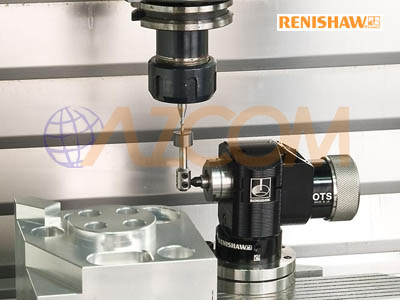

Contact tool setter
and broken tool detection
Machine type Transmission type Minimum tool detection Repeatability (2σ)
OTS Small – medium Optical Ø1.0 mm 1.0 µm
RTS Medium – large Radio Ø1.0 mm 1.0 µm
TS27R Small – large Hard-wired Ø1.0 mm 1.0 µm
TS34 Small – large Hard-wired Ø1.0 mm 1.0 µm
Primo™ Radio 3D Tool Setter Small – medium Radio Ø1.0 mm 1.0 µm
Primo™ LTS Small – large  Hard-wired  Ø0.1 mm  0.75 µm
Non-contact tool setter
and broken tool detection
Machine type Transmission type Minimum
tool detection
Repeatability (2σ)
NC4 Small – large Hard-wired Ø0.03 mm 0.10 µm
NCPCB PCB machine Hard-wired Ø0.10 mm 0.50 µm
Broken tool detection
with
ToolWise™
TRS2 Small – large  Hard-wired  Ø0.02 mm
