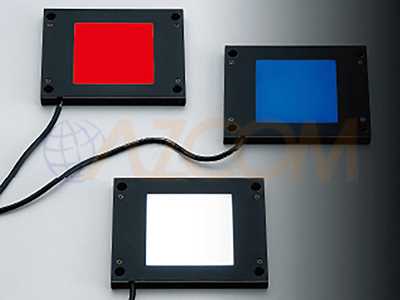

UEB Series

・Suitable for transmission inspection.
・Light guide plate used for even and uniform plane emission.
・Light intensity is less than that of the direct type, but the space needed for use is reduced.

Specifications: UEB Series

Type Light color Light-emitting surface dimensions (mm) Power consumption PDF DXF
UEB-25R25 Red  25×25 24V/0.5W
UEB-25W25 White □ 25×25 24V/0.4W
UEB-25B25-2 Blue  25×25 24V/0.4W
UEB-50R50 Red  50×50 24V/1.9W
UEB-50W50 White □ 50×50 24V/3.3W
UEB-50B50-2 Blue  50×50 24V/3.3W
UEB-70R50 Red  70×50 24V/1.9W
UEB-70W50 White □ 70×50 24V/3.3W
UEB-70B50-2 Blue  70×50 24V/3.3W
UEB-100R100* Red  100×100 24V/3.8W
UEB-100W100* White □ 100×100 24V/6.5W
UEB-100B100* Blue  100×100 24V/6.5W

“*” represents built-to-order products. Green light is also available for BTO products.
Red light can be operated using a higher brightness 4-element LED in which case “2” should be put to the end of the type code.
